GNodeFactory

Quick Links:

RoleAuthor

LicenseMIT

GNodeFactory running the Solar System Demo at 123 FPS

Contributions

Handle-based node allocation and recycling Pooled, data-oriented node storage Parent, child and sibling hierarchy linking Bulk and partial hierarchy resolution

Optional sphere BVH generation Metadata-masked hierarchy searches Frustum, sphere, AABB, OBB and capsule queries Thread-shared locking and parallel traversal

Pooled Node Storage

Transforms, states and metadata each get their own pool instead of one struct per node.
Every node is referenced by a single 64-bit handle, with the pool index and slot index packed into it.
Deleted slots get reused rather than freed. The factory also tracks how many nodes it has handed out and taken back.

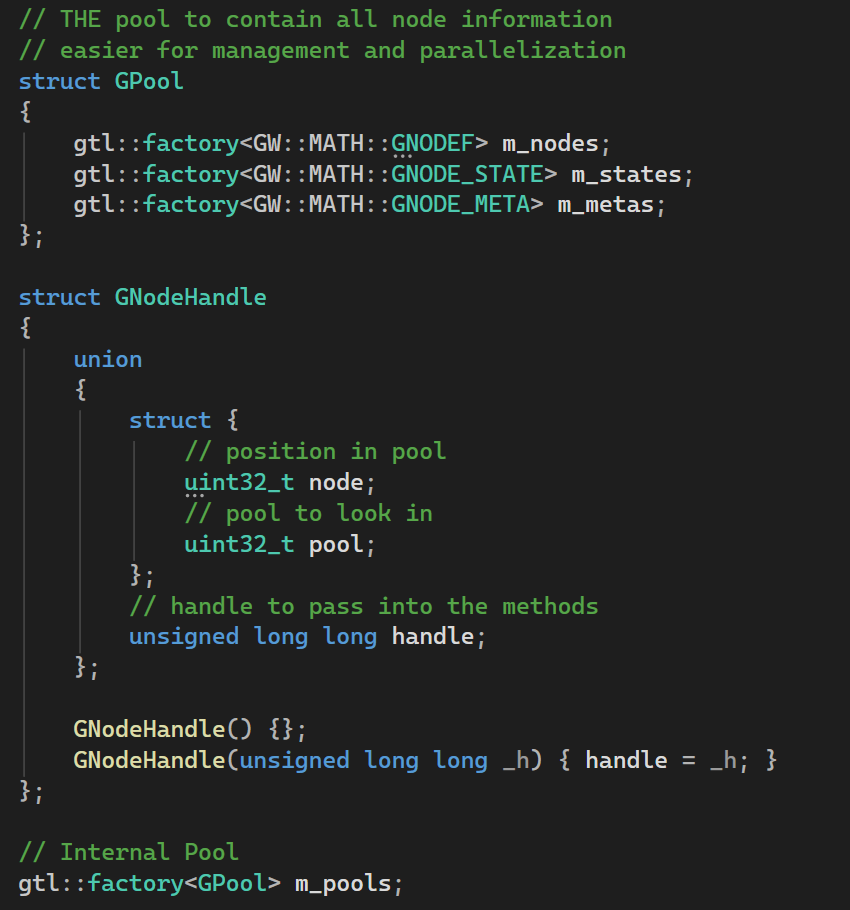

GPool and GNodeHandle struct definitions

Hierarchy Resolution

Parenting, unparenting and connecting all take arrays, so an entire scene can be relinked in one call.
Resolving runs over the whole tree, or just the branches that actually moved.
Sphere bounds can be rebuilt during the same pass. Without that, the spatial queries go stale the moment a transform changes.

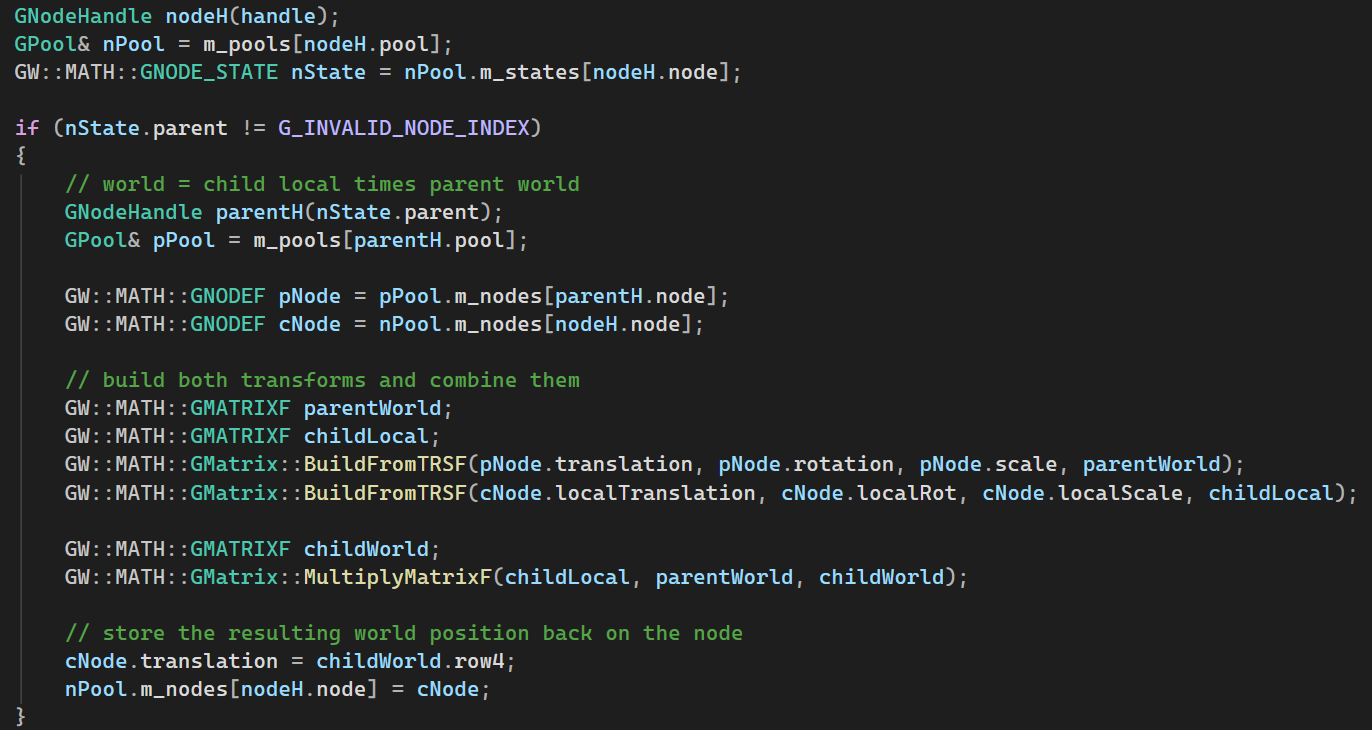

Code combining a child's local transform with its parent's world matrix

Spatial and Metadata Queries

Nodes can be searched against a frustum, sphere, AABB, OBB or capsule.
Each search takes a metadata mask, so you only get back the nodes you actually asked for.
Parent, child and sibling searches walk the full hierarchy and return every match, not just the immediate one.

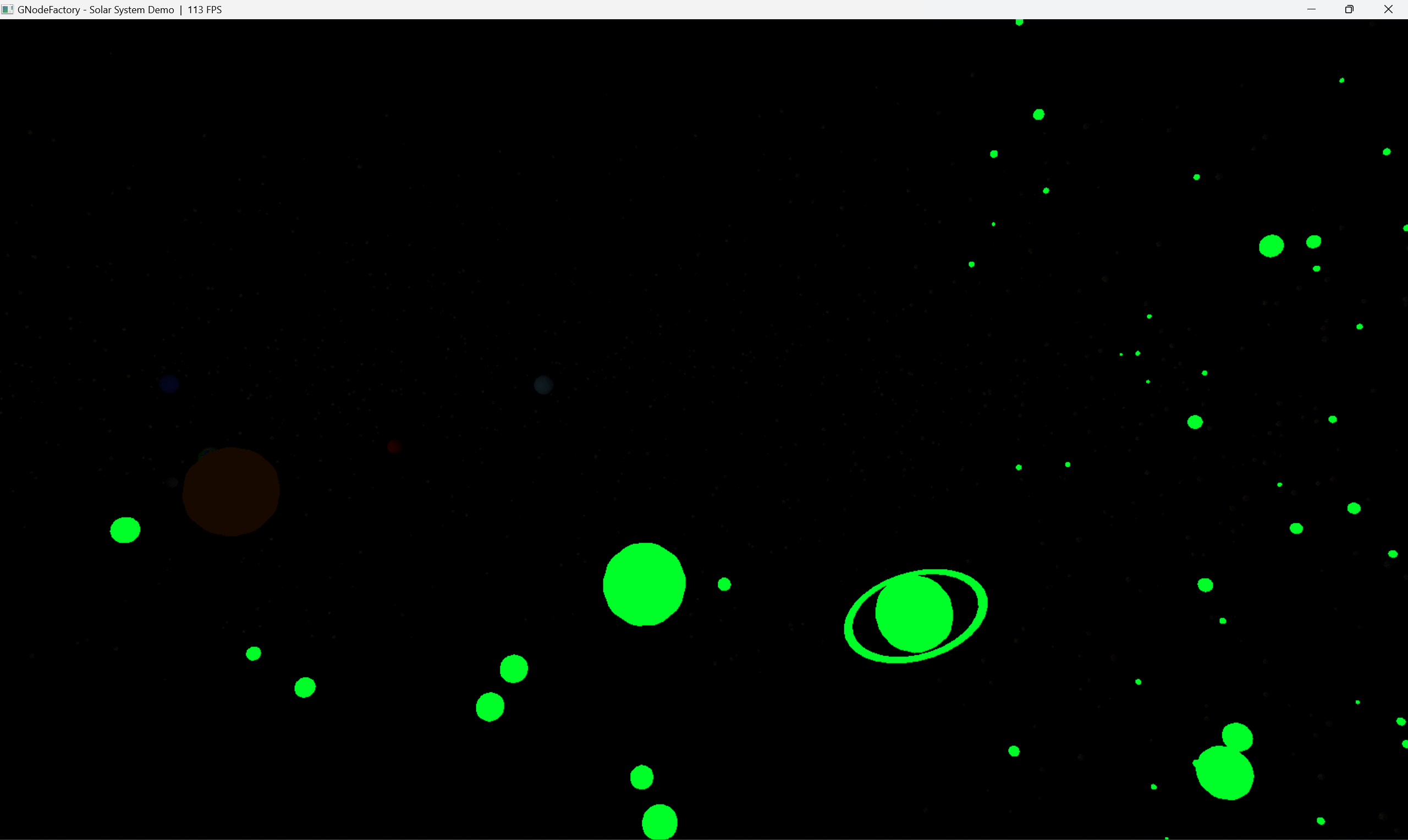

Solar System Demo with every node matching the query highlighted in green

Threading

Pool access goes through a shared lock. Readers run together, writers get the pool to themselves.
The tree walk keeps its scratch buffers thread-local, so workers aren't fighting over the same memory.

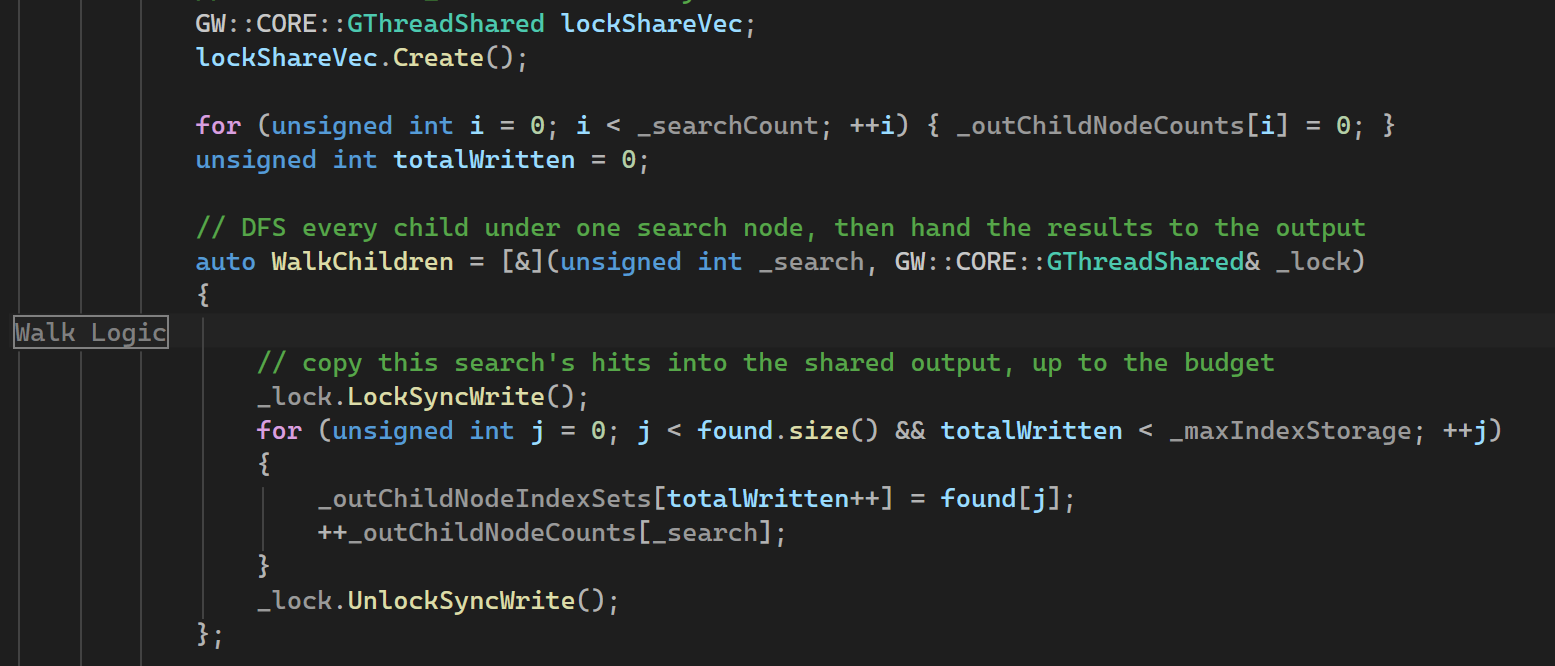

Child-walking lambda copying its results under a shared write lock

The Solar System Demo driven entirely by GNodeFactory, running at 123 FPS.

Every node returned by a spatial query, highlighted in green.

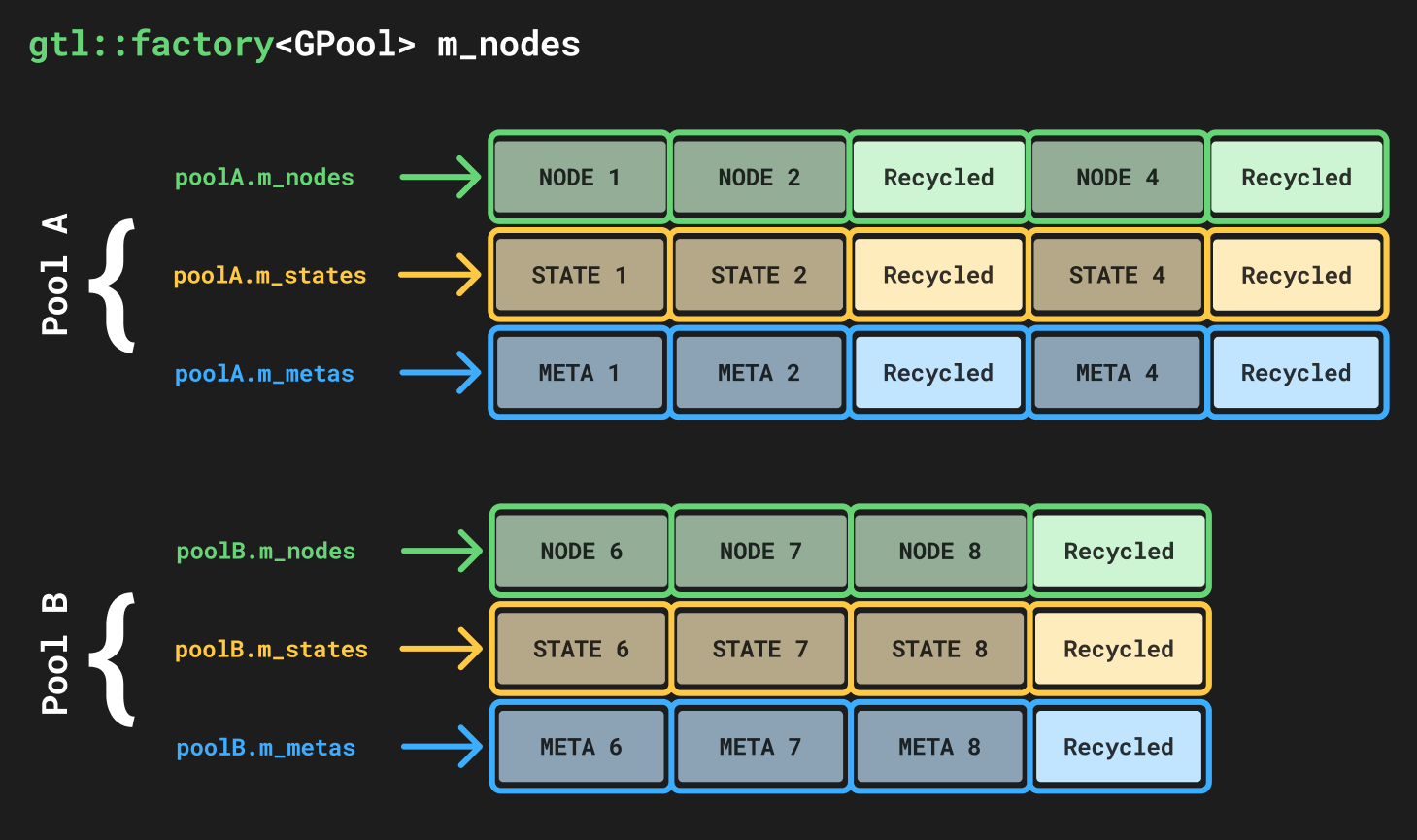

The node pools and the packed 64-bit handle used to address them.

Resolving a child's world transform from its parent.

Writing search results back under a shared write lock.
